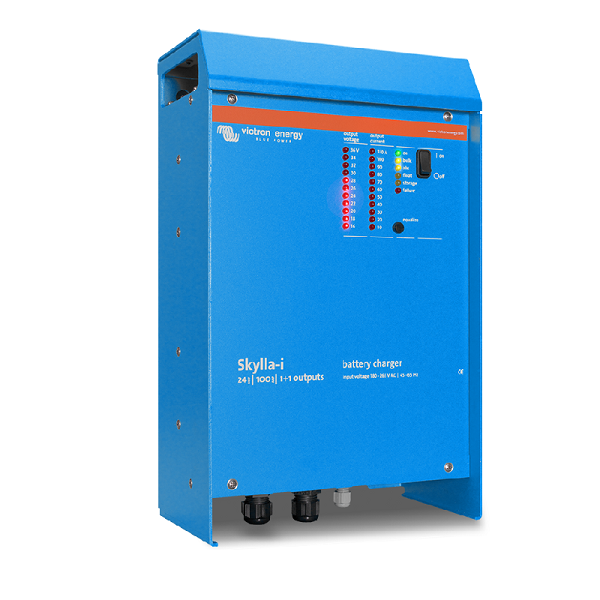

Bộ sạc ắc quy Victron Skylla-i

Thương hiệu: Victron
|
Loại: Chargers
|
Mã SP: SKI024080000
38,498,900₫ Chờ khoảng 2-3 tuần

Bộ sạc pin/ắc quy hiện đại và mạnh mẽ, chịu được sự khắc nghiệt của môi trường bất lợi: nhiệt, độ ẩm và hơi muối.

  • Sạc phù hợp cho ắc quy axit chì: Thay đổi linh hoạt thời gian sạc hấp thụ
  • Chế độ BatterySafe: ngăn ngừa hư hỏng do thoát khí quá nhiều
  • Chế độ Storage: ít phải bảo dưỡng và lão hóa khi pin không sử dụng
  • Nhỏ hơn và nhẹ hơn so với các mẫu tương tự
  • Kết nối Canbus NMEA 2000
  • PowerControl: đặt công suất điện bờ tối đa
  • Điều khiển từ xa
  • Sử dụng được với ắc quy Li-ion (LiFePo4)

(1+1) – là loại 1 đầu ra dòng lớn dùng sạc ắc quy tải điện và 1 đầu ra 4A dùng để sạc ắc quy khởi động

(3) – là loại có 3 đầu ra dòng lớn dùng sạc ắc quy tải điện

Model
Hotline hỗ trợ: +842466526528
|
Số lượng

Rugged

Aluminium epoxy powder coated cases with drip shield and stainless steel fixings withstand the rigors of an adverse environment: heat, humidity and salt air.

Circuit boards are protected with an acrylic coating for maximum corrosion resistance.

Temperature sensors ensure that power components will always operate within specified limits, if needed by automatic reduction of output current under extreme environmental conditions.

Flexible

Next to a CAN bus (NMEA2000) interface, a rotary switch, DIP switches and potentiometers are available to adapt the charge algorithm to a particular battery and its conditions of use. Please refer to the manual for a complete overview of the possibilities.

Synchronised parallel operation

Several chargers can be synchronised with the CAN bus interface. This is achieved by simply interconnecting the chargers with RJ45 UTP-cables. Please see the manual for details.

The right amount of charge for a lead-acid battery: variable absorption time

When only shallow discharges occur the absorption time is kept short in order to prevent overcharging of the battery. After a deep discharge the absorption time is automatically increased to make sure that the battery is completely recharged.

Preventing damage due to excessive gassing: the BatterySafe mode

If, in order to quickly charge a battery, a high charge current in combination with a high absorption voltage has been chosen, the Skylla-i will prevent damage due to excessive gassing by automatically limiting the rate of voltage increase once the gassing voltage has been reached.

Less maintenance and aging when the battery is not in use: the Storage mode

The storage mode kicks in whenever the battery has not been subjected to discharge during 24 hours. In the storage mode float voltage is reduced to 2,2 V/cell (26,4 V for 24 V battery) to minimise gassing and corrosion of the positive plates. Once a week the voltage is raised back to the absorption level to ‘refresh’ the battery. This feature prevents stratification of the electrolyte and sulphation, a major cause of early battery failure.

To increase battery life: temperature compensation

Every Skylla-i comes with a battery temperature sensor. When connected, charge voltage will automatically decrease with increasing battery temperature. This feature is especially recommended for sealed lead-acid batteries and/or when important fluctuations of battery temperature are expected.

Battery voltage sense

In order to compensate for voltage loss due to cable resistance, the Skylla-i is provided with a voltage sense facility so that the battery always receives the correct charge voltage.

Suitable for AC and DC supply (AC-DC and DC-DC operation)

The chargers also accept a DC supply.

Use as a power supply

As a result of the perfectly stabilized output voltage, the Skylla-i can be used as a power supply if batteries or large buffer capacitors are not available.

Li-Ion (LiFePO4) ready

Simple charger on-off control can be implemented by connecting a relay or open collector optocoupler output from a Li-Ion BMS to the remote control port of the charger. Alternatively complete control of voltage and current can be achieved by connecting to the galvanically isolated CAN bus port.
