WideLink B600 series is the world’s first AIS class B black box certified to IEC 62287-1 Ed.2.0: 2017, the latest SOTDMA class B standard. Its 5W transmission power, higher reporting rate and professional grade time division management make it an overall more advanced product compared to the conventional 2W class B.
The B600 converts NMEA 2000 instrument data into NMEA 0183 sentences, such as heading, speed, depth, temperature, wind, pressure and so on. With the multiplexing function, sensor data along with AIS and GPS information can be displayed on chart plotter and PC

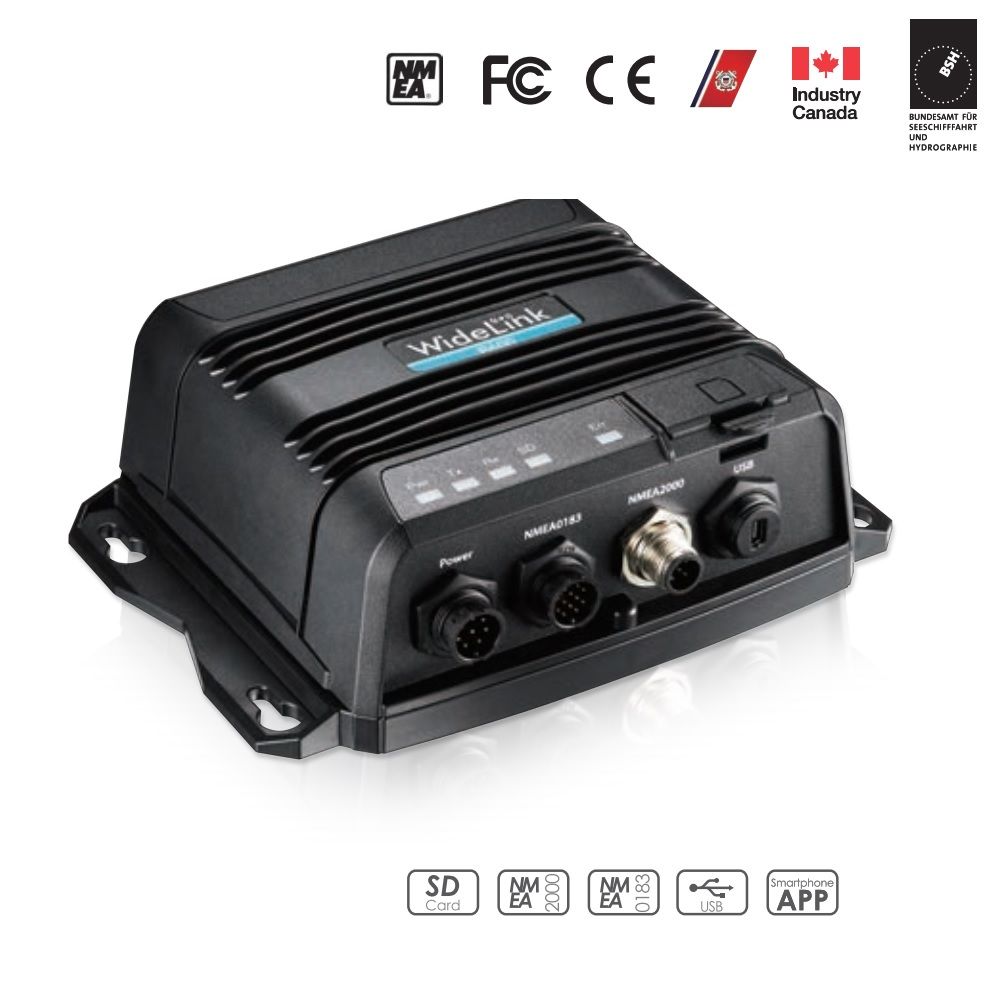

WideLink B600
The B600 incorporates SOTDMA technology for increased 5W transmission power and enhanced transmission frequency. Its IP67 waterproof and shock and temperature robustness are designed for harsh marine environment. It features versatile connection interfaces including NMEA 2000, NMEA 0183 and USB
WideLink B600W
Based on the superior design of B600, the B600W features high performance Wi-Fi supporting both Access Point mode and client mode. It converts NMEA 2000 instrument data such as heading, wind, speed, depth etc into NMEA 0183 and Wi-Fi. With the multiplexing function, sensor data along with AIS and GPS can be displayed on navigation apps and PC software

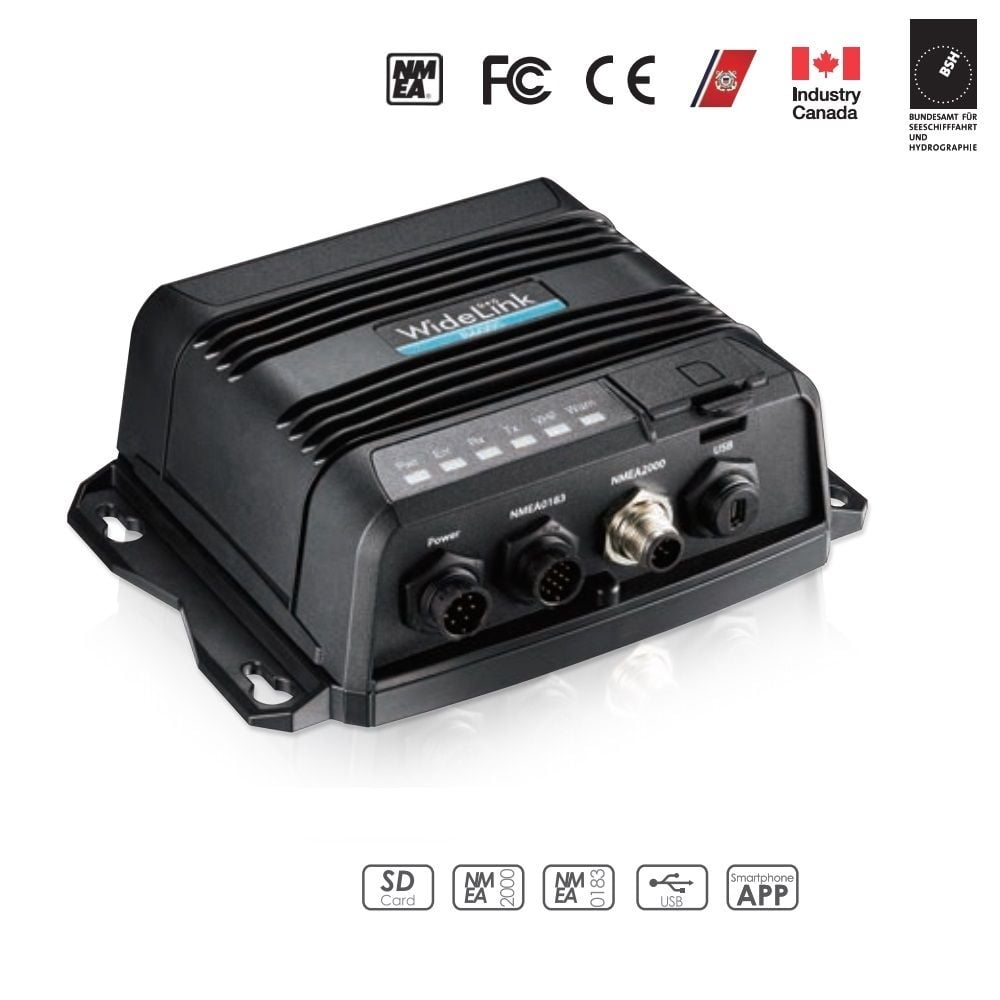

WideLink B600S
Based on the superior design of B600, the B600S incorporates high performance antenna splitter to enable easy installation. The antenna splitter has zero insertion loss on reception path and very low loss on transmission path.
| B600 | B600W | B600S | |
| THỎA THEO TIÊU CHUẨN | |||
| IEC 62287-2 Ed. 2.0: 2017 IEC 60945 Ed. 4.0: 2002 IEC 61162-1 Ed. 5.0: 2016 ITU-R M.1371-5: 2014 | |||
| THÔNG SỐ PHÁT VHF | |||
| Dải tần | 156.025 MHz ~ 162.025 MHz | ||
| Loại công nghệ | SOTDMA | ||
| Công suất phát | 5W | ||
| Độ nhạy | < -107 dBm @ 20% PER | ||
| THÔNG SỐ THU GNSS | |||
| Kênh thu | 72 kênh | ||
| Vị trí chính xác | Tuân thủ tiêu chuẩn IEC 61108-1 | ||
| GIAO DIỆN KẾT NỐI | |||
| Đầu nối NMEA 0183 | có | có | có |
| Đầu nối NMEA 2000 | có | có | có |
| USB | có | có | có |
| Kết nối Wi-Fi | - | có | - |
| Tích hợp bộ chia ăng ten | - | - | có |
| THÔNG SỐ MÔI TRƯỜNG | |||
| Nhiệt độ hoạt động | -15°C tới +55°C | ||
| Chuẩn chống nước | IP67 | ||
| THÔNG SỐ NGUỒN ĐIỆN | |||
| Nguồn điện yêu cầu | 12-24V DC / 2.1-1.0A(max) | 12-24V DC / 2.2-1.1A(max) | 12-24V DC / 2.2-1.1A(max) |
