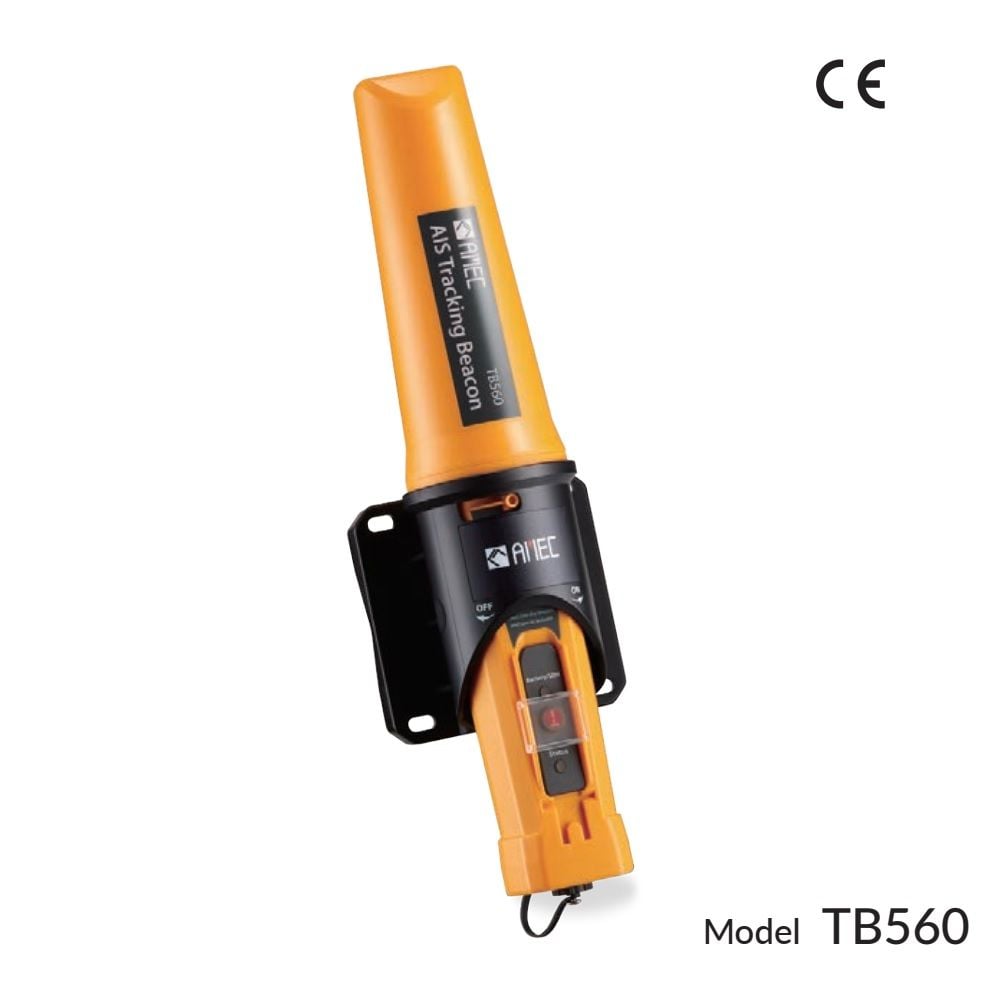

The AMEC AIS Tracking Beacon (TB560) is a simplified “AIS Class B” device that o‑ers ecient and cost e‑ective vessel monitoring solution. With this device installed onboard, port authorities and/or vessel owners can identify and monitor vessels within AIS VHF transmission range.
The device is activated automatically when it´s mounted into a dedicated bracket. The unit’s tamper-proof feature intelligently prevents unauthorized transferring between vessels. TB560 can operate up to 5 days with its rechargeable battery. The device has built-in VHF and GPS antenna for easy carriage and installation. It can transmit SRM (SOS) message in case of emergency.
TB560 is compact, lightweight and robust even for smallest crafts. A wide range of optional functions are available for users to make the product fit for individual application.
All-in-One Device
TB560 is supplied with built-in VHF antenna, GPS antenna, and internal rechargeable battery. Handy! Ready to serve!
Removable AIS Class-B
TB560 can be installed and activated on vessel easily when vessel crew onboard. It can also be deactivated and removed from vessel in a second. A portable device for small vessel tracking and monitoring.
Anti-Tamper Capability
TB560 can be properly activated only if the unit is installed in the bracket which is paired to it. Removing TB560 from the bracket will turn off the unit automatically.
Up to 5 Days Operation
The internal battery can support the device to operate for 2~5 days, depending on its AIS signal transmitting interval setting (which is configurable during installation) and its battery lifecycle.
Power Supply Option
TB560 is typically powered by the internal rechargeable battery. The internal battery can be re-charged via external AC/DC charging unit. TB560 can also be powered by optional solar-panel when necessary. This device is suitable for small craft or jet-ski without an electrical power supply on board. TB560 can also be powered via vessel power supply with an optional DC/DC power adapter.
High Performance for Your Safety
Built on the market-proven AMEC class B architecture, the TB560 is designed to deliver high performance both for crew member and authority with safety features included.
| TB560 | TB560C | TB560M | |
| THỎA THEO TIÊU CHUẨN | |||
| IEC 62287-1 Ed. 2.1: 2013 IEC 60945 Ed. 4.0: 2002 IEC 61108-1 Ed. 2.0: 2003 ITU-R M.1371-5: 2014 | |||
| THÔNG SỐ PHÁT VHF | |||
| Máy phát | 1 | ||
| Máy thu | 1 (chỉ dành cho cảm biến sóng mang) | ||
| Tần số phát/thu | 161.975 MHz và/hoặc 162.025 MHz | ||
| Công suất phát | Có thể cấu hình 2W hoặc 5W | 2W | 5W |
| THÔNG SỐ THU GNSS | |||
| Kênh thu | 50 kênh | ||
| Vị trí chính xác | < 2,5 m Tự động & SBAS | ||
| GIAO DIỆN KẾT NỐI | |||
| Nút khẩn cấp SOS | có | ||
| PIN (tích hợp trong) | |||
| Loại PIN | Pin Li-ion 2600 mAh | Pin Li-ion 3180 mAh | |
| Thời gian hoạt động | Tối đa 5 ngày (tùy thuộc vào tỷ lệ báo cáo) | ||
| Thời gian sạc | 3 giờ | 3~4 giờ | |
| THÔNG SỐ MÔI TRƯỜNG | |||
| Nhiệt độ hoạt động | -15°C tới +55°C | ||
| Chuẩn chống nước | IP67 | ||
| ADAPTOR NGUỒN (tùy chọn) | |||
| Nguồn vào | 90~240V AC | ||
| Nguồn ra | 12V DC, 2A | 5V DC, 1A | |
